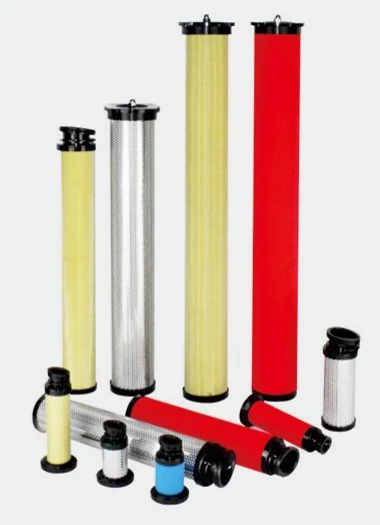

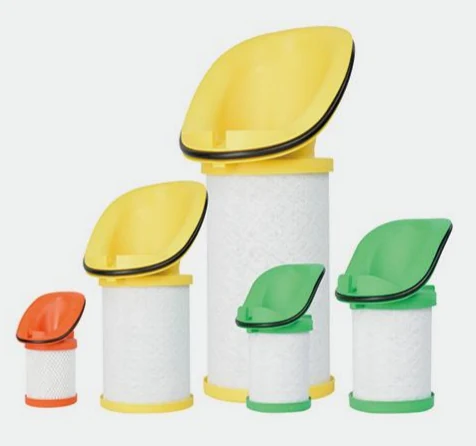

Representative product image or technical illustration. Final dimensions, grade and configuration depend on the selected model.

Replacement Filter Elements

Hankison Compatible Filter Elements

Name: Hankison Compatible Filter Elements
Brand: Maxpuris

Independent replacement elements for compatible Hankison compressed air filter housings.

Request a quote ↗WhatsApp

Models & specifications

Select a model to include it in your inquiry. Flow values and dimensions are selection references; confirm the operating conditions and final configuration with your quotation.

Maxpuris model	Original reference	Flow (Nm³/min)
MP-HK-E-12 ↗	Hankison E*-12	0.57
MP-HK-E-16 ↗	Hankison E*-16	1
MP-HK-E-20 ↗	Hankison E*-20	1.72
MP-HK-E-24 ↗	Hankison E*-24	2.9
MP-HK-E-28 ↗	Hankison E*-28	4.9
MP-HK-E-32 ↗	Hankison E*-32	7.2
MP-HK-E-36 ↗	Hankison E*-36	11
MP-HK-E-40 ↗	Hankison E*-40	14
MP-HK-E-44 ↗	Hankison E*-44	18
MP-HK-E-48 ↗	Hankison E*-48	22

Filtration grade options

Availability varies by model. Where a model has its own grade options above, use those model-specific values.

Grade	Filtration (µm)	Residual oil (ppm)	Media
9	3.0	5.0	—
7	1.0	1.0	—
5	0.01	0.01	—
3	0.01	0.001	—
1	0.01	0.003	activated carbon

Confirm the required flow, working pressure, temperature, filtration grade and connection before ordering. Catalog values are indicative and subject to confirmation for the quoted model; application-specific testing or certification is supplied only when agreed and supported by the relevant documentation.

Ordering & private label

Send your selected model or original reference, quantity and delivery country. For a private label project, include your preferred product marking and packaging requirements. Minimum order quantity, sample availability and lead time are confirmed with your quotation.
