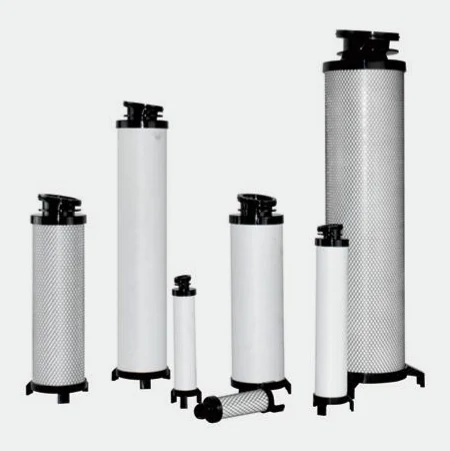

Representative product image or technical illustration. Final dimensions, grade and configuration depend on the selected model.

Replacement Filter Elements

BEKO Compatible Filter Elements

Name: BEKO Compatible Filter Elements
Brand: Maxpuris

Independent replacement elements for compatible BEKO compressed air filter housings.

Request a quote ↗WhatsApp

Models & specifications

Select a model to include it in your inquiry. Flow values and dimensions are selection references; confirm the operating conditions and final configuration with your quotation.

Maxpuris model	Original reference	Flow (Nm³/min)
MP-BK-04 ↗	BEKO 04*	0.77
MP-BK-05 ↗	BEKO 05*	1.42
MP-BK-06 ↗	BEKO 06*	2.17
MP-BK-07 ↗	BEKO 07*	3.25
MP-BK-10 ↗	BEKO 10*	4.17
MP-BK-12 ↗	BEKO 12*	5.33
MP-BK-15 ↗	BEKO 15*	6.92
MP-BK-18 ↗	BEKO 18*	9.08
MP-BK-20 ↗	BEKO 20*	13
MP-BK-22 ↗	BEKO 22*	16.92
MP-BK-23 ↗	BEKO 23*	17
MP-BK-25 ↗	BEKO 25*	21.66
MP-BK-27 ↗	BEKO 27*	27
MP-BK-30 ↗	BEKO 30*	33
MP-BK-32 ↗	BEKO 32*	48

Filtration grade options

Availability varies by model. Where a model has its own grade options above, use those model-specific values.

Grade	Filtration (µm)	Residual oil (ppm)	Media
C	25.0	10.0	—
G	5.0	5.0	—
F	1.0	0.1	—
S	0.1	0.01	—
N	0.01	0.001	—
A	0.01	0.003	activated carbon

Confirm the required flow, working pressure, temperature, filtration grade and connection before ordering. Catalog values are indicative and subject to confirmation for the quoted model; application-specific testing or certification is supplied only when agreed and supported by the relevant documentation.

Ordering & private label

Send your selected model or original reference, quantity and delivery country. For a private label project, include your preferred product marking and packaging requirements. Minimum order quantity, sample availability and lead time are confirmed with your quotation.
