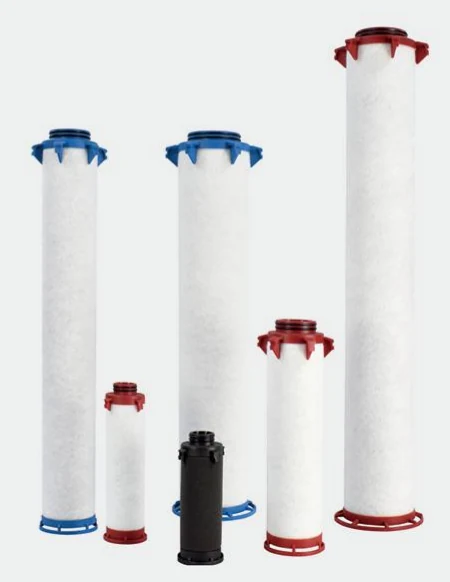

Representative product image or technical illustration. Final dimensions, grade and configuration depend on the selected model.

Replacement Filter Elements

Walker Alpha Compatible Filter Elements

Name: Walker Alpha Compatible Filter Elements
Brand: Maxpuris

Independent replacement elements for compatible Walker Alpha compressed air filter housings.

Request a quote ↗WhatsApp

Models & specifications

Select a model to include it in your inquiry. Flow values and dimensions are selection references; confirm the operating conditions and final configuration with your quotation.

Maxpuris model	Original reference	Flow (Nm³/min)
MP-WA-E0304 ↗	Walker Alpha E0304*	0.23
MP-WA-E0305 ↗	Walker Alpha E0305*	0.43
MP-WA-E0406 ↗	Walker Alpha E0406*	0.71
MP-WA-E0407 ↗	Walker Alpha E0407*	1
MP-WA-E0413 ↗	Walker Alpha E0413*	1.41
MP-WA-E0613 ↗	Walker Alpha E0613*	2.4
MP-WA-E0620 ↗	Walker Alpha E0620*	3.81
MP-WA-E0625 ↗	Walker Alpha E0625*	4.95
MP-WA-E0730 ↗	Walker Alpha E0730*	9.8
MP-WA-E0830 ↗	Walker Alpha E0830*	12.75
MP-WA-E0860 ↗	Walker Alpha E0860*	19.8
MP-WA-E1140 ↗	Walker Alpha E1140*	25.5
MP-WA-E1160 ↗	Walker Alpha E1160*	35.4
MP-WA-E1175 ↗	Walker Alpha E1175*	42.5
MP-WA-E88 ↗	Walker Alpha E88*	21

Filtration grade options

Availability varies by model. Where a model has its own grade options above, use those model-specific values.

Grade	Filtration (µm)	Residual oil (ppm)	Media
X25	25.0	10.0	—
X5	5.0	5.0	—
X1	1.0	1.0	—
XA	0.01	0.001	—
AC	0.01	0.003	activated carbon

Confirm the required flow, working pressure, temperature, filtration grade and connection before ordering. Catalog values are indicative and subject to confirmation for the quoted model; application-specific testing or certification is supplied only when agreed and supported by the relevant documentation.

Ordering & private label

Send your selected model or original reference, quantity and delivery country. For a private label project, include your preferred product marking and packaging requirements. Minimum order quantity, sample availability and lead time are confirmed with your quotation.
