Replacement Filter Elements

Atlas Copco Compatible Filter Elements

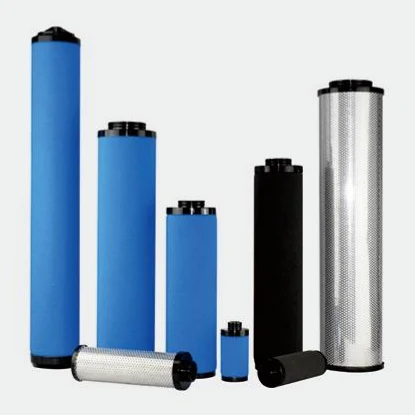

Name: Atlas Copco Compatible Filter Elements
Brand: Maxpuris

Independent replacement elements for compatible Atlas Copco compressed air filter housings.

Request a quote ↗WhatsApp

Models & specifications

Select a model to include it in your inquiry. Flow values and dimensions are selection references; confirm the operating conditions and final configuration with your quotation.

Maxpuris model	Original reference	Flow (Nm³/min)	Selection note
MP-AT-9 ↗	Atlas Copco *9	0.54	—
MP-AT-17 ↗	Atlas Copco *17	1.02	—
MP-AT-32 ↗	Atlas Copco *32	1.92	—
MP-AT-44 ↗	Atlas Copco *44	2.64	—
MP-AT-60 ↗	Atlas Copco *60	3.6	—
MP-AT-120 ↗	Atlas Copco *120	7.2	—
MP-AT-150 ↗	Atlas Copco *150	9	—
MP-AT-175 ↗	Atlas Copco *175	10.5	—
MP-AT-260 ↗	Atlas Copco *260	15.6	—
MP-AT-390 ↗	Atlas Copco *390	23.4	—
MP-AT-520 ↗	Atlas Copco *520	31.2	—
MP-AT-780 ↗	Atlas Copco *780	—	Flow rating and exact fit require confirmation for this catalog reference.

Filtration grade options

Availability varies by model. Where a model has its own grade options above, use those model-specific values.

Grade	Filtration (µm)	Residual oil (ppm)	Media
DD	1.0	1.0	—
PD	0.01	0.01	—
QD	0.01	0.003	activated carbon

Confirm the required flow, working pressure, temperature, filtration grade and connection before ordering. Catalog values are indicative and subject to confirmation for the quoted model; application-specific testing or certification is supplied only when agreed and supported by the relevant documentation.

Ordering & private label

Send your selected model or original reference, quantity and delivery country. For a private label project, include your preferred product marking and packaging requirements. Minimum order quantity, sample availability and lead time are confirmed with your quotation.
